KARL FISCHER METHOD MOISTURE DETERMINATION

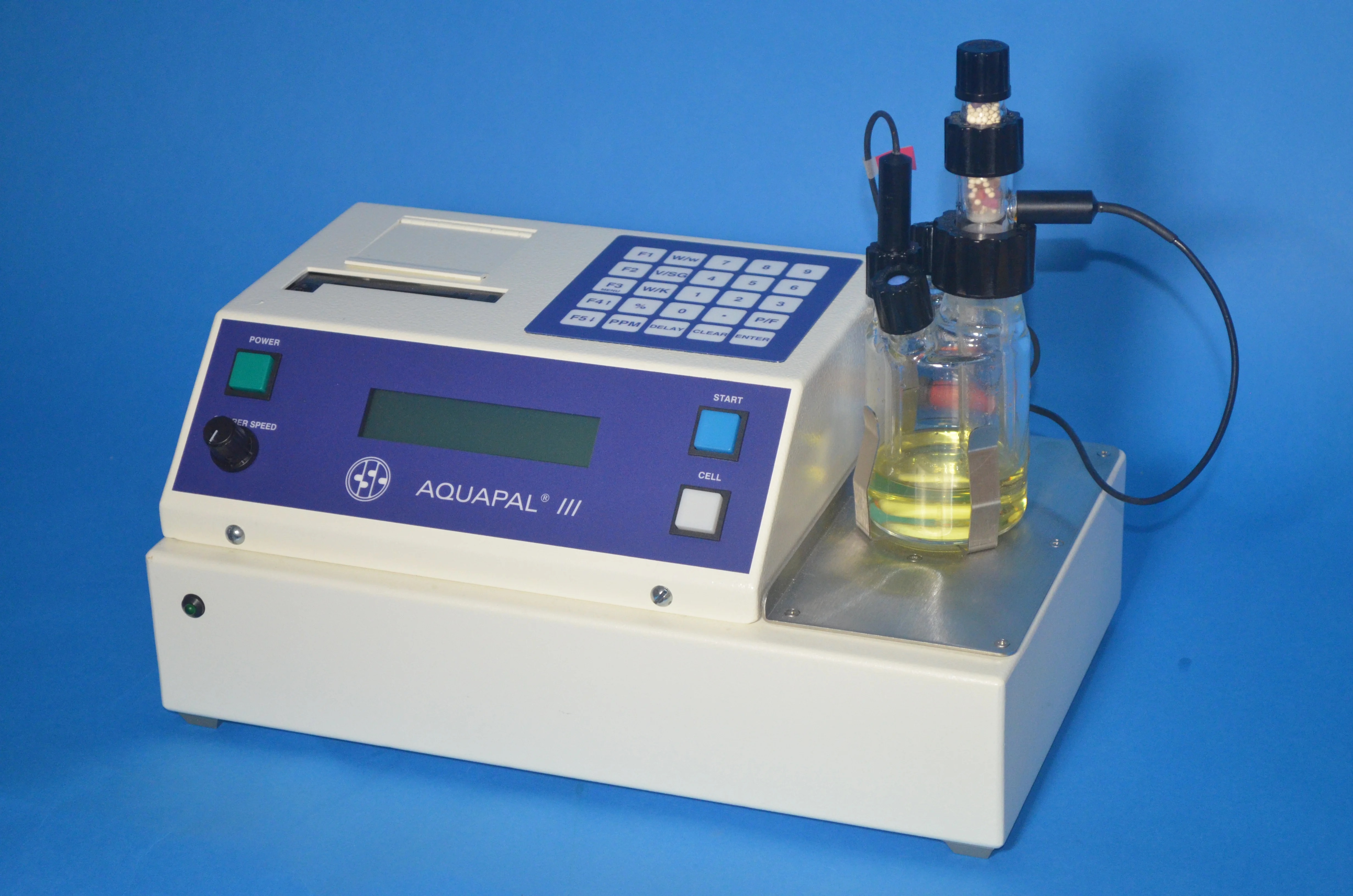

AquaPal Coulametric Titrator
The Water Determination Test (Karl Fischer Method) is designed to determine the moisture content in substances,
utilizing the quantitative reaction of water with iodine and sulfur dioxide, in the presence of a lower alcohol such as
methanol, and an organic base such as pyridine.
In the coulometric titration method, first, iodine is produced by electrolysis of a reagent containing the iodide ion, and then, the moisture content in the sample is determined by measuring the quantity of electricity which is required for the electrolysis (i.e., for the production of iodine), based on the quantitative reaction of the generated iodine with water.
The apparatus for coulametric titration is comprised of an electrolytic cell for iodine production,
a stirrer, a titration flask, and a potentiometric titration system at constant current.
The iodine production device is composed of an anode and a cathode, separated by a diaphragm.
The anode is immersed in the anolyte solution, and the cathode is immersed in the catholyte solution.
Both electrodes are usually made of platinum-mesh
