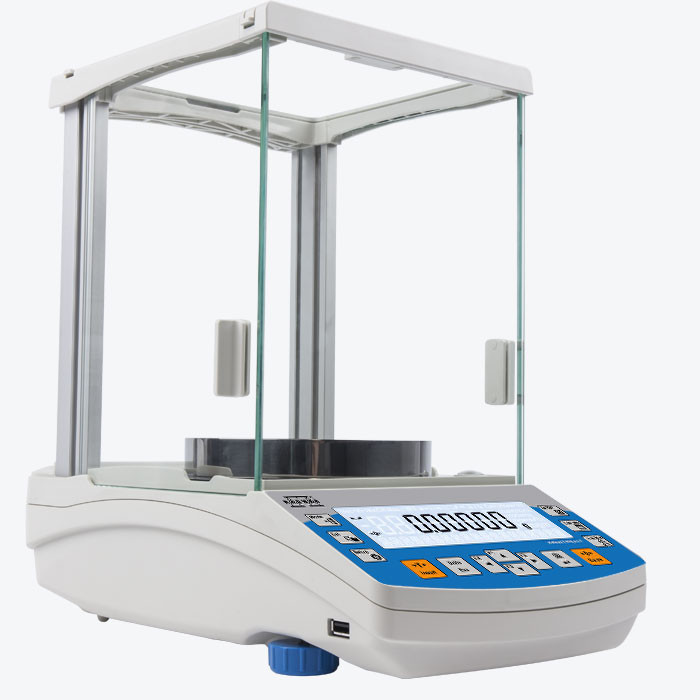

ASR2 PLUS ANALYTICAL BALANCE 62 gm Capacity
The innovative AS R2 PLUS analytical balances guarantee precision and readability
along with resistance to variable ambient conditions. New ergonomic solutions ensure
convenient operation.
| Maximum capacity [Max] |
62 g |
| Minimum load |
1 mg |
| Readability [d] |
0.01 mg |
| Verification unit [e] |
1 mg |
| Tare range |
-62 g |
| Standard repeatability [5% Max] |
0.012 mg |
| Standard repeatability [Max] |
0.02 mg |
| Standard minimum weight (USP) |
24 mg |
| Standard minimum weight (U=1%, k=2) |
2.4 mg |
| Permissible repeatability [5% Max] |
0.02 mg |
| Permissible repeatability [Max] |
0.035 mg |
| Linearity |
±0.05 mg |
| Stabilization time |
2 s |
| Adjustment |
internal (automatic)
|
| OIML Class |
I
|
| Leveling system |
manual
|
| Display |
LCD (backlit)
|
| Weighing chamber doors |
manual
|
| Delivery components |
Balance, weighing pan, osłona weighing pans, centring ring, bottom cover, power supply, fabric dust cover.
|
| Weighing pan dimensions |
ø90 open-work pan + ø85 (option) mm |
| Packaging dimensions |
545×455×575 mm |
| Net weight |
6.98 kg |
| Gross weight |
10.5 kg |
| Protection class |
IP 43
|
| Communication interface |
2×RS232¹, 2×USB-A (interchangeable), USB-B, Wi-Fi® (option)
|
| Power supply |
Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
|
| Power consumption max. |
3 W
|
| Operating temperature |
+10 – +40 °C |
| Relative humidity |
40% – 80%
|
Physical parametersConstructionCommunication interfaceElectrical parametersEnvironmental conditions
