Product Description
SALES (804) 318-3686

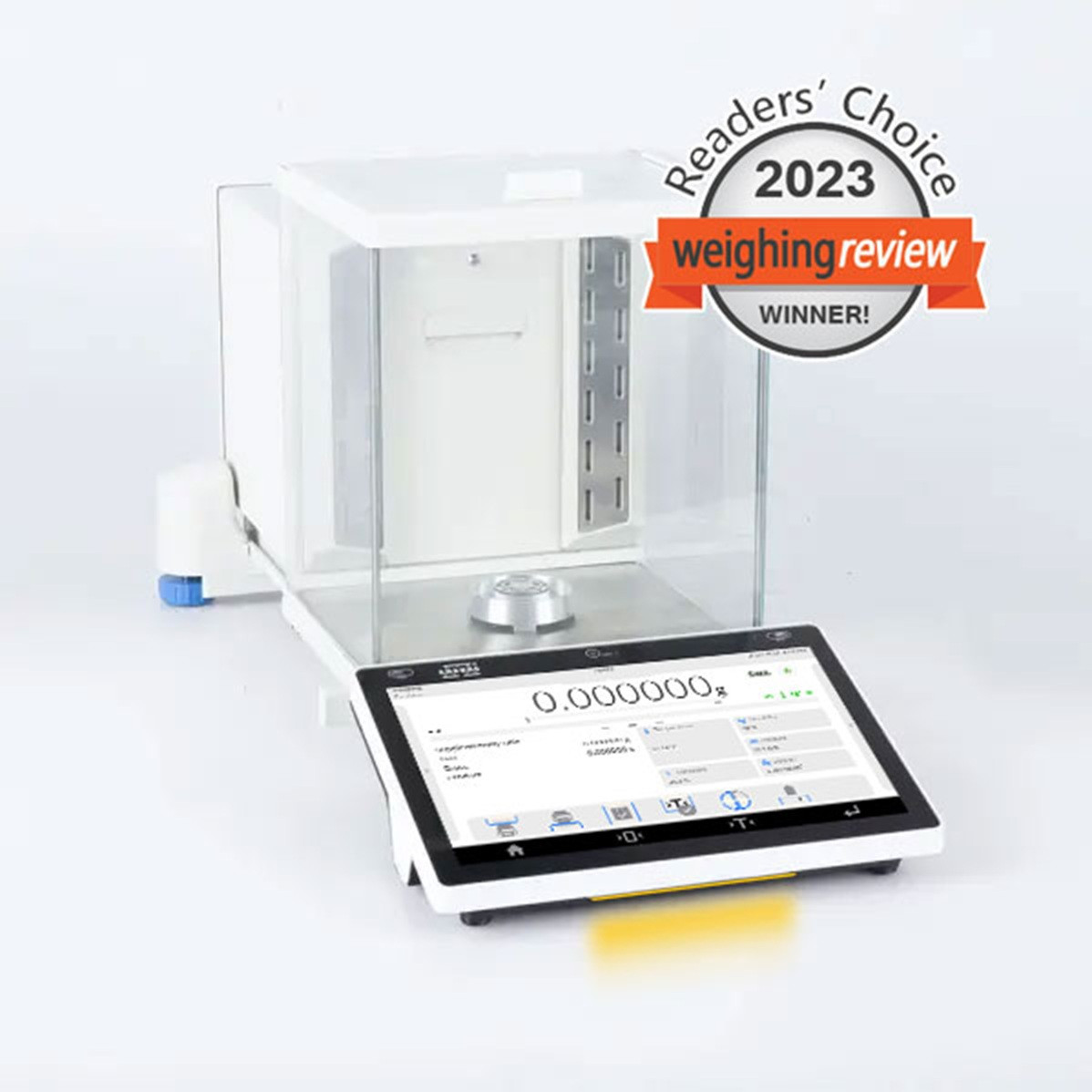

ELIPSIS 6.5Y M.A. MICRO BALANCE
■ Manual doors
■ Semi-automatic levelling
■ Reading unit [d] 1 μg
■ Spacious weighing chamber. 199 x 157 x 218 mm
■ Large weighing pan: 0 30 mm
■ Tool-free disassembly of the chamber
■ Compliance with 21 CFR Part 11 / EU GMP Annex 11
■ External ionizer (optional)
Metrological Parameters
Maximum capacity [Max] 6.1 g
Minimum load 0.1 mg
Readability [d] 1 µg
Verification unit [e] 1 mg
Tare range -6.1 g
Standard repeatability [5% Max] 0.8 µg
Standard repeatability [Max] 2.5 µg
Standard minimum weight (USP) 1.6 mg
Standard minimum weight (U=1%, k=2) 0.16 mg
Permissible repeatability [5% Max] 1.5 µg
Permissible repeatability [Max] 3 µg
Linearity ±7 µg
Eccentric load deviation 7 µg
Sensitivity time drift 1×10-6/Year×Rt
Stabilization time ~3,5 s
Adjustment internal (automatic)
OIML Class I
Physical parameters
Leveling system: Automatic - Reflex Level System
Display: 10″ touchscreen
Protection class: IP 43
Delivery components: Microbalance, weighing pan, weighing pan shield,
power supply, brush, fabric dust cover.
Weighing chamber dimensions: 199×170×217 mm
Weighing pan dimensions: ø30 mm
Packaging dimensions: 750×492×595 mm
Net weight: 14.5 kg
Gross weight: 18.9 kg
Electrical Parameters
Power supply Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,4A max*
The ELIPSIS 6.5Y M.A. Micro Balance is engineered for precision and reliability, providing exceptional performance for analytical applications. Its advanced features make it a perfect fit in laboratories that demand accuracy in weighing up to 6.1 grams, with a readability of 1 µg for superior measurement resolution.
Designed with user-friendly functionality, this microbalance integrates manual doors and semi-automatic leveling for effortless operation. The spacious weighing chamber and large pan readily accommodate various samples, ensuring versatility across various applications in pharmaceutical, agricultural, and industrial settings.
- Weight capacity of 6.1 g, with a minimum load of 0.1 mg
- Outstanding readability of 1 µg, ensuring precision in measurements
- Automatic Reflex Level System for optimal accuracy
- 10" touchscreen display for easy navigation and efficiency
- Complies with 21 CFR Part 11 / EU GMP Annex 11 for regulatory adherence
- Optional external ionizer for enhanced measurement stability
- Quick tool-free disassembly of the chamber for easy cleaning and maintenance
The ELIPSIS 6.5Y M.A. Micro Balance is the ideal solution for laboratories seeking technological sophistication paired with robust compliance features, ensuring precise and reliable results for critical measurements. Elevate your analytical capabilities with this exceptional instrument.
