KINEMATICA POLYMIX PXMFC90D WITH BLADE MILL ATTACHMENT
YOUR LABORATORY EXPERT This laboratory mill is characterized by a very robust design
using solid milled parts, and hardened components that have been designed for high wear and tear.
OPERATING INSTRUCTIONS
PX - MFC 90 D drive unit with blade mill attachment package
- PXMFC 90D
- Blade Mill attachment
- 2.0 Sieve
- Main Cable, 115V
- Tool Set
- Wooden Rack for 12 Tubes
- Set of 12 Tubes
RESULTS ARE CRUCIAL
Attainable particle sizes < 40μm (depending on product)
Sieve kernel sizes 1 / 5 of sieve diameter is the approximately attainable kernel size e.g.,
sieve 0.2 mm / 5 = 0.04 mm (40μm)
Grinding attachment variants
Hammering / Blade from hardened stainless steel
Hammer grinding attachment: brittle samples

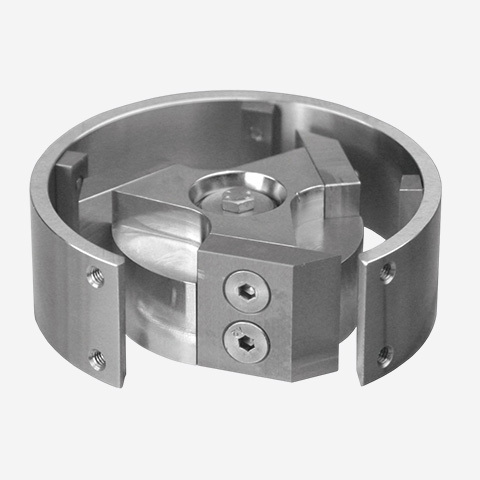

Blade grinding attachment: stringy, fibrous samples
TECHNICAL INFORMATION
Funnel volume 300 ml
Product discharge For collection tubes with norm grinding NS29
Sieves 0.2 to 6 mm mesh size
Motor Wear-free three-phase motor
Gearless direct drive
Security system auto-off
Drive power 1000W
Speed range 50 to 6000 rpm
Sound level (without load) 70 dB(A) for 6000 rpm
Supply voltage 100 – 230 V ± 10 %, 50Hz / 60Hz
Maximum relative humidity
80 % in storage
80 % during operation
Operating temperature 0 – 40 °C
Protection class according to DIN IP 20
Measurements (L x W x H) 325 x 251 x 480 mm
Weight 12 kg
Standard EMC IEC / EN 61000-6-2 / EN 61000-6-3
Safety Norm IEC / EN 61010-2-51
Maximize your laboratory's efficiency with the Kinematica Polymix PXMFC90D Blade Mill Attachment, an essential tool for precise powder and liquid sampling. Designed with robust construction and high-wear components, this instrument excels in creating uniform particle sizes, making it ideal for various applications across pharmaceutical and agricultural testing.
The PXMFC90D features advanced engineering for high-performance grinding. It is capable of reducing samples to particle sizes < 40μm with unparalleled speed and reliability. The blade attachment is particularly suited for fibrous materials, while the hammer attachment addresses brittle samples, empowering your lab with versatility.
- Robust design with solid milled parts for lasting durability
- Achievable particle sizes < 40μm, optimizing sampling accuracy
- Grinding attachments made of hardened stainless steel for high wear resistance
- Direct drive motor with speed range from 50 to 6000 rpm
- Funnel volume of 300 ml, compatible with standard collection tubes (NS29)
- User-friendly security system with auto-off feature for safety
- Compact dimensions (325 x 251 x 480 mm) and lightweight (12 kg) for easy integration into any laboratory space
- Versatile sieve sizes from 0.2 to 6 mm mesh for tailored grinding solutions
- Meets international EMC and safety standards for laboratory instruments
Enhance your laboratory's capabilities with the Kinematica Polymix PXMFC90D Blade Mill Attachment, designed for precision, compliance, and practical usability in scientific applications.
