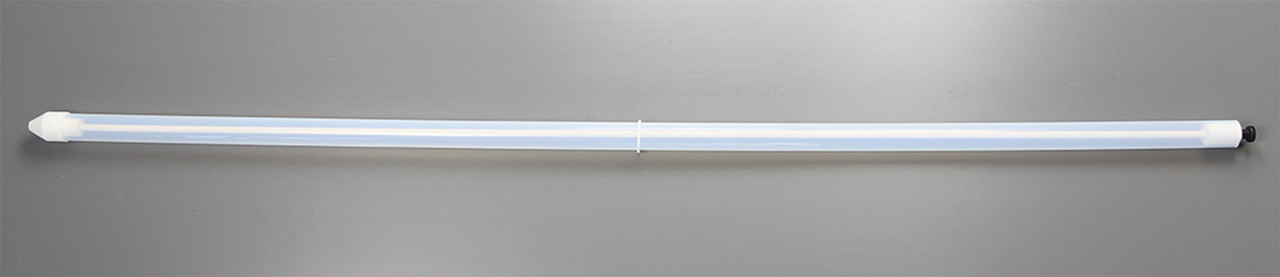

  • SAMPLER LIQUID MASTER PTFE/MFA LENGTH 1500 mm MAX SAMPLE VOL 1000 ml Sampler Specification Specification Number 675 5035J1500 Revision 02 Part No. 675 5035J1500 Description Liquid Master Materials of Construction: Tip PTFE Outer Tube FEP Stopper PTFE Cup PTFE Spring Mild steel (non-product contact part) Inner Rod PTFE & stainless steel Button Plastic (non-product contact part) Diameter of Outer Tube: 35mm Max. Diameter of Tip: 38mm Overall Length: 1565mm BSE/TSE Free: Yes Nominal Weight: 1355g Notes: The polymers used for the product contact parts for this sampler conform to 177.2600 and USP Class VI

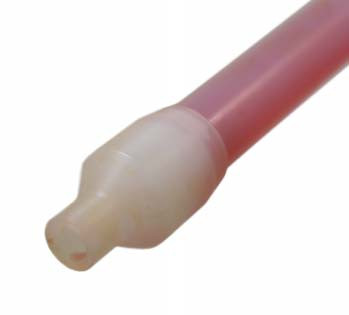

  • Sampler Tip Seal arrangement prevents sample from dripping
  • Push Button Press to take sample
  • Operation: Technique 1 - Point Sampling Insert the sampler. Press the push button to take sample. Remove the sampler. Technique 2 - Cross Sectional Press the Push Button and then slowly insert the sampler into the product. As the sampler is pushed in a cross sectional sample is taken. Release the push button at the required depth to stop any more liquid from entering the Sampler. Remove the sampler. NB. To take a large sample the sampler needs to be inserted deep into the product.

    • Liquid Master Jumbo PTFE/MFA 1500 mm x 1000 ml

    QAQC LAB

    $823.00
    (No reviews yet) Write a Review
    SKU:
    675 5035J1500
    Weight:
    10.00 LBS
    Width:
    6.00 (in)
    Height:
    59.00 (in)
    Depth:
    6.00 (in)
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

    SALES (804) 318-3686

    SAMPLER LIQUID MASTER PTFE/MFA LENGTH 1500 mm MAX SAMPLE VOL 1000 ml
    Ideal for Sampling Various Liquids - Type:  Single Point & Cross Sectional Sampling
    The Liquid Master is ideal for taking samples from low and medium
    viscosity liquids. It is available in a range of lengths and diameters
    to give a range of sample volumes.
    The Liquid Master is easy to use and is designed to be quickly
    stripped down for cleaning.

    SPECIFICATIONS




     liquid-master1.jpg     liquid-master3.jpg

    Operation:
    Technique 1 - Point Sampling
    Insert the sampler. Press the push button to take sample. Remove the sampler.
    Technique 2 - Cross Sectional
    Press the Push Button and then slowly insert the sampler into the product. As the
    sampler is pushed in a cross sectional sample is taken. Release the push button at the
    required depth to stop any more liquid from entering the Sampler. Remove the sampler.
    NB. To take a large sample the sampler needs to be inserted deep into the product.

    A 5 ml sample will be taken for every 10 mm the Liquid Master is inserted into the product.
