Product Description
SALES 804 318 3686

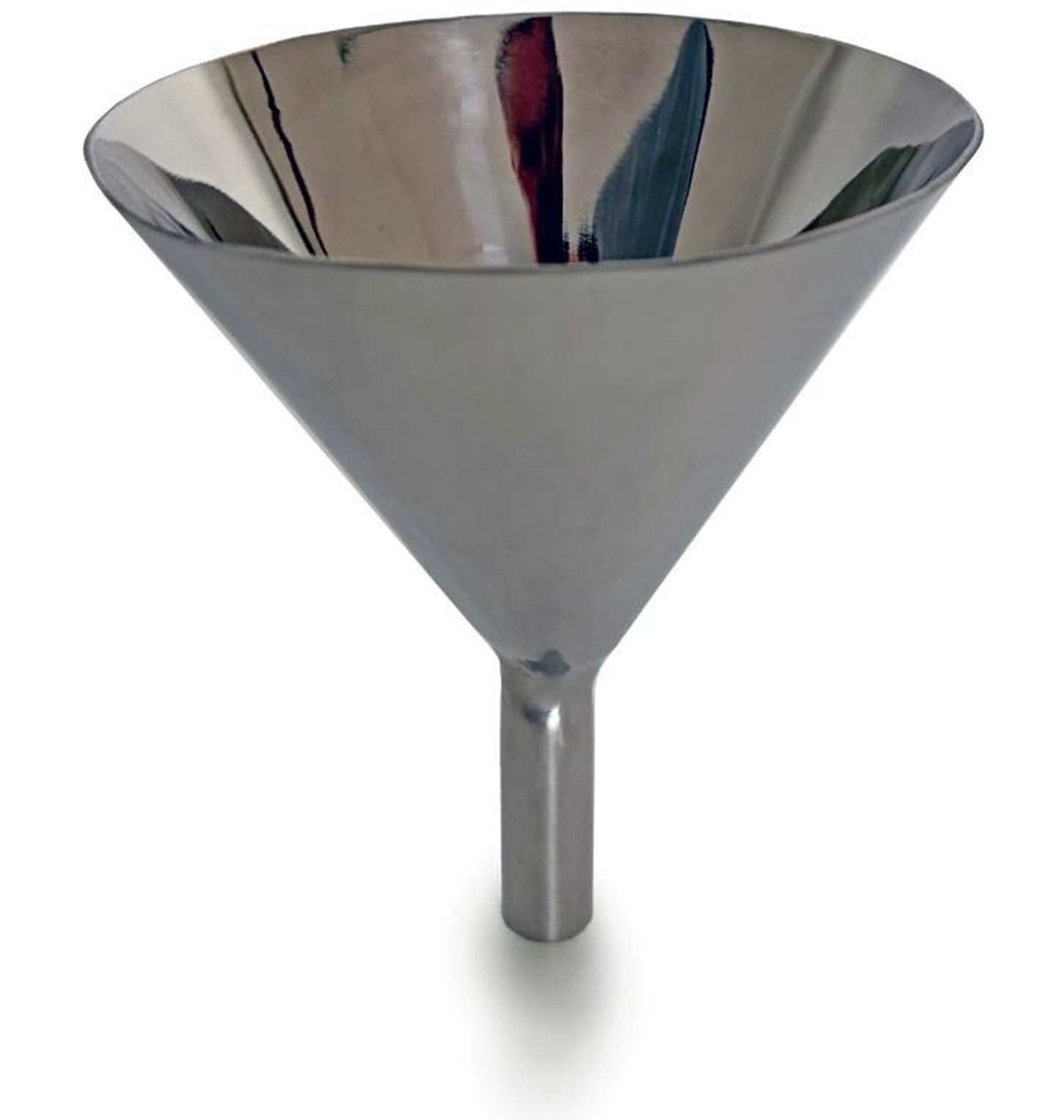

PHARMA FUNNEL 675 A45610012
Pharma Funnels are the ultimate in stainless steel quality.
They are made from high quality 316L stainless steel and finished to a mirror polish.
All the welds are ground and polished smooth so cleaning is easy.
- 316L stainless steel
- Widely used in the pharmaceutical and food industries
- Bright polish
- Fully welded construction
Description Funnel 100mm top diameter, 12 mm spout diameter
Use Suitable for low viscosity liquids
Material of Construction: 316L stainless steel
Method of Construction: Crevice free all welds ground and polished
Surface Finish: Better than 0.5 microns Ra

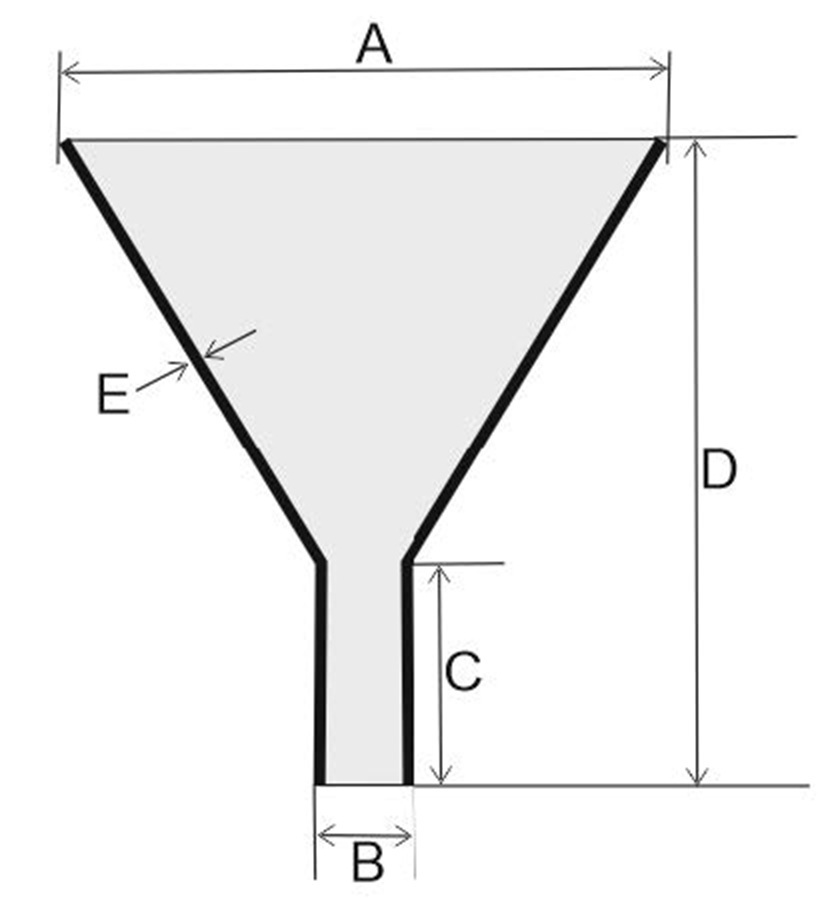

Dimensions A - Top Diameter 100mm
B - Diameter of Spout 12.5mm
C - Length of Spout 40mm
D - Overall Height 118mm
E - Wall Thickness 1.5mm
Internal Angle: 60°
Nominal Weight: 160g
BSE/TSE statement: All polishing compounds used in the manufacture of this product are
of vegetable origin
Recommended Storage Conditions: Dry and ambient temperature
Note: This product should be thoroughly cleaned before it is used for the first time
