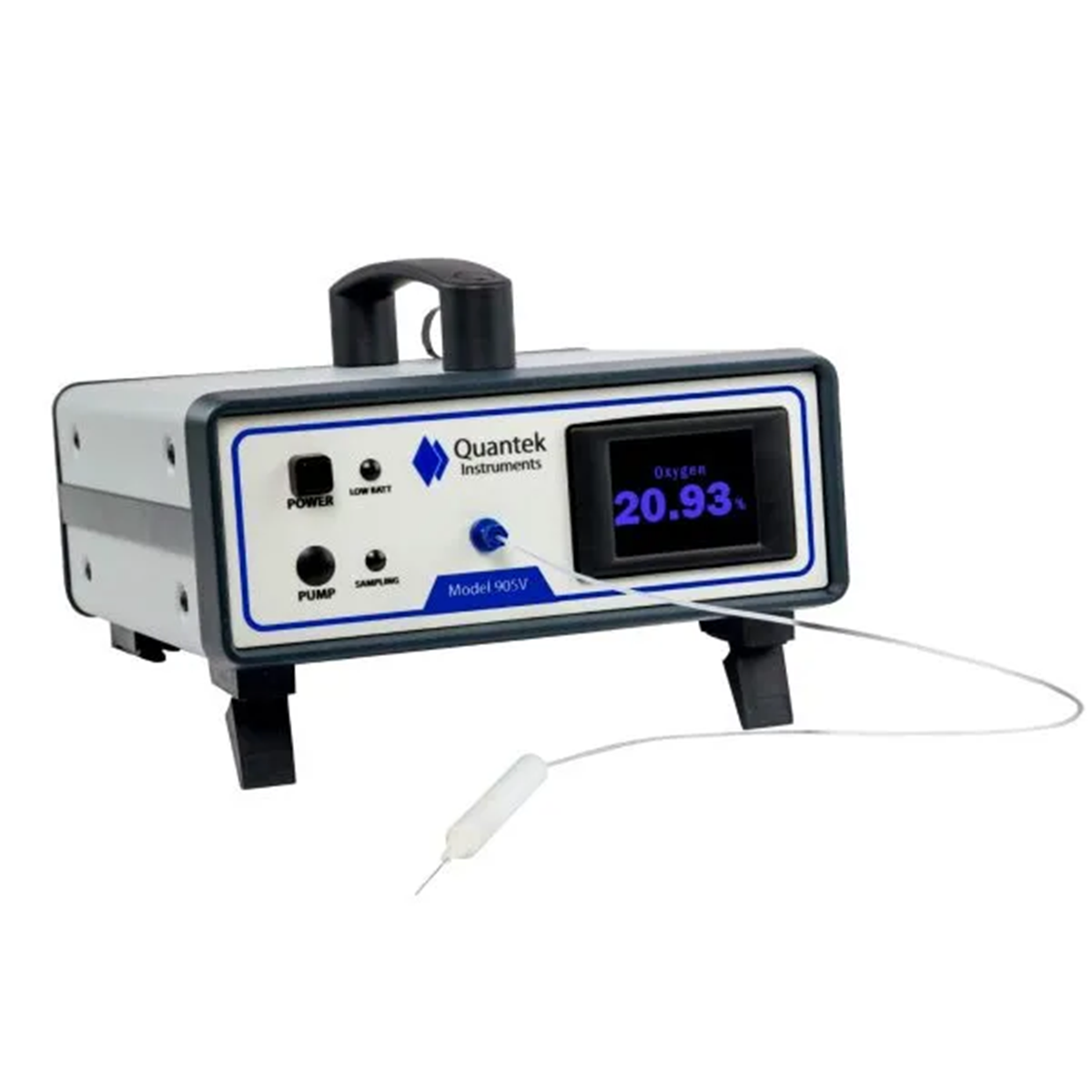

QUANTEK 905V Pharmaceutical Vial O2 Analyzer
The Quantek Model 905V is a pharmaceutical headspace oxygen analyzer.
Use it for headspace oxygen analysis in pharmaceutical products – vials,
blister packs, bottles, or difficult tubes of products (such as cosmetics).
Achieve results with as little as 1cc of headspace.
LABORATORY OR PRODUCTION LINE
The Model 905V is a rugged benchtop unit housed in a heavy-duty metal enclosure,
well suited for continuous use in routine QC testing in the laboratory.
With built-in battery operation (optional) in addition to the AC mode,
this unit can be easily transported and used at remote locations such as the packaging line.
Model 905V Key Features and Attributes
ABOUT THE SENSOR
The Model 905V sensor is designed specifically for this purpose.
The oxygen sensor internal chamber has a very small volume of about 0.1 cc.
The sensor is located directly behind the front panel to eliminate excessive volume.
The sensor has in /out ports with a 0.03 in. ID. The vent port of the sensor connects to a
short piece of narrow-bore tubing for sample exhaust and introduction of zero or calibration gases.
