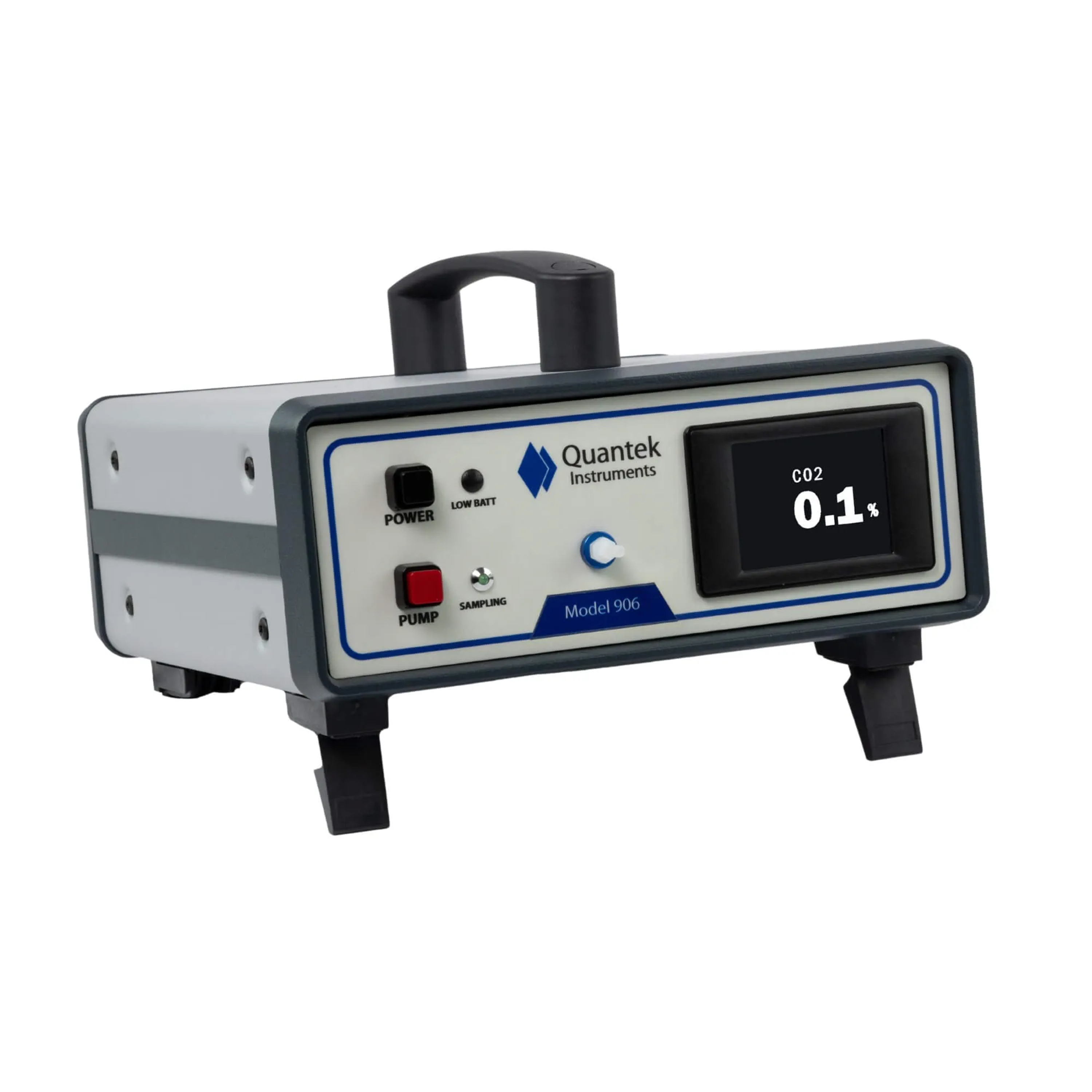

QUANTEK 906 BENCHTOP CO2 ANALYZER
The Quantek Model 906 Benchtop CO2 Analyzer is designed for continuous
or spot measurement and analysis of carbon dioxide levels.
OPERATING INSTRUCTIONS(0-10000ppm)
OPERATING INSTRUCTIONS(0-25000ppm)
The sensor design is compact, has a low internal volume and requires only a low sample flow of about 5 to 1000 cc/min.
Our market leading CO2 sensor uses the latest in dual-wavelength NDIR measurement principles, reducing drift and
allowing for results in as little as 10-15 seconds. While the sample introduced should be clean and dry (non-condensing),
should moisture enter the analyzer, the Model 906 is equipped with an internal moisture trap filter.
This provides a last barrier of protection, and is user-replaceable (we provide spares).
The Model 906 uses a solid-state infrared sensor which has no moving parts,
a compact optical cell, and microprocessor-based calibration factors using a 6th order polynomial equation
to linear the full range measurement up to 100%. Infrared CO2 measurements are inherently non-linear,
especially over a high range of concentrations.
The math algorithm used in the 906 yields more accurate measurements
over a much wider range of concentrations than other methods.
