Quantek Q20 Portable Analyzers
Test for CO2 levels in packages, processes, and containers

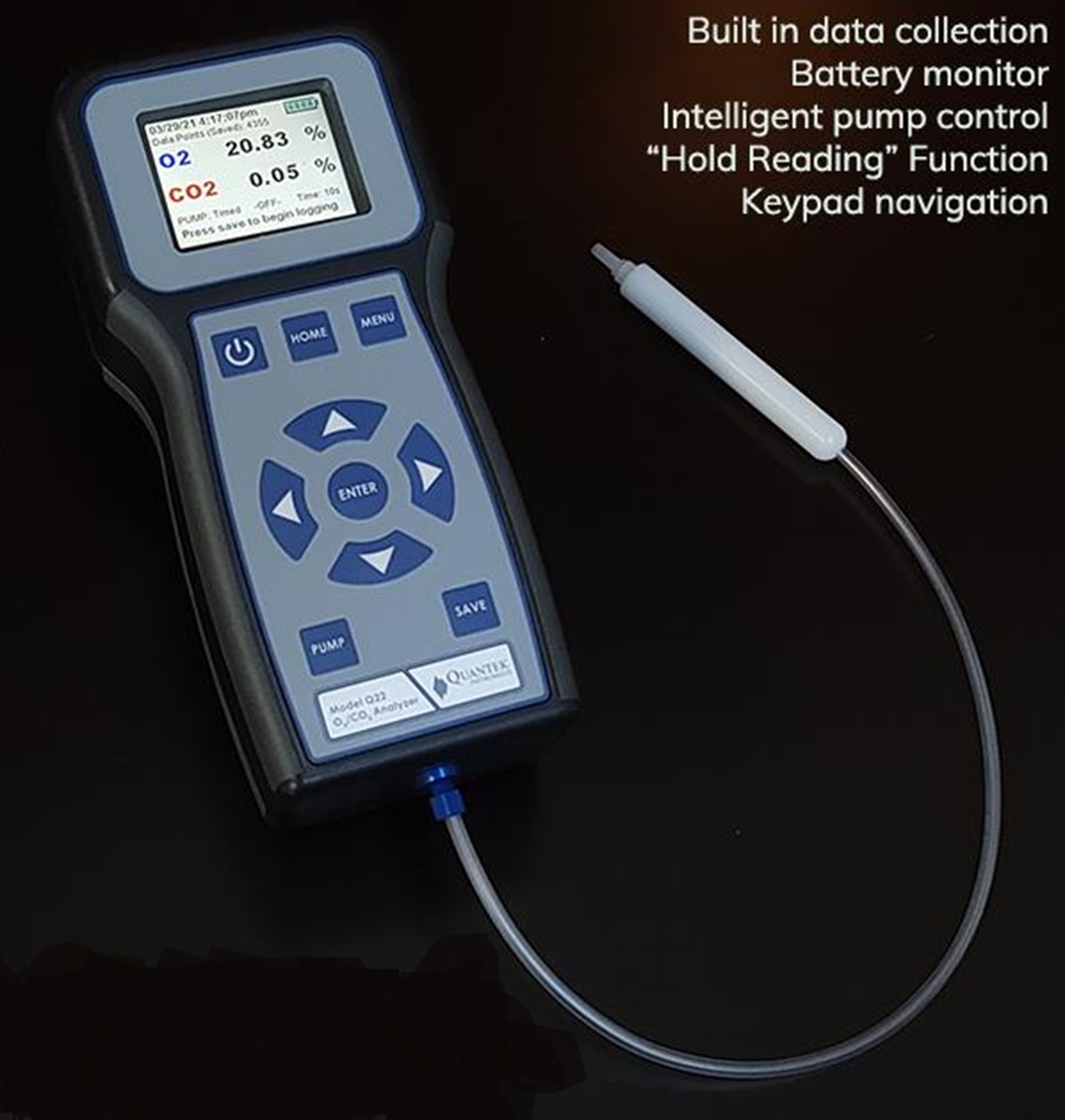

The Q20 series of analyzers feature a color display, menu driven setup, calibration functions,
a built-in sample pump, and data collection (up to 100,000 values).
This unit combines a fast response sensor for oxygen in a small, lightweight (under 2 lbs.)
package for maximum trans portability and ease of use in all types of gas measurement applications.
The unit is battery operated and can be easily moved or transported as needed.
Low power consumption enables up to 15 hours of operation before re-charging (charger included) is required.
The unit has a rugged miniature diaphragm pump with adjustable timing functions to operate only when sampling.
The Q20 Series is available with several sampling inlet configurations to suit many different monitoring applications,
including a sample probe/needle assembly for package testing, or a straight tube probe with flexible tubing attachment.
The latter attachment is ideal for insertion into various processes, containers, and bio enclosures.
Package Sampling
The Q20 Series is equipped with fast response sensors, and is ideal for rapid,
routine package testing. With our standard sample probe/needle assembly,
this unit is used for the measurement of CO2 in many types of modified atmosphere packages (MAP),
or “gas-flushed" packaged foods such as meats,snack foods,fresh vegetables,
coffee,nuts,fruits,dairy products,and ready-to-eat packaged foods including salads.
Also it has a hold function, data collection, process spot checks, utilize electrochemical CO2 sensor,
sampling probe assembly, sampling pump, and rechargeable batteries.
