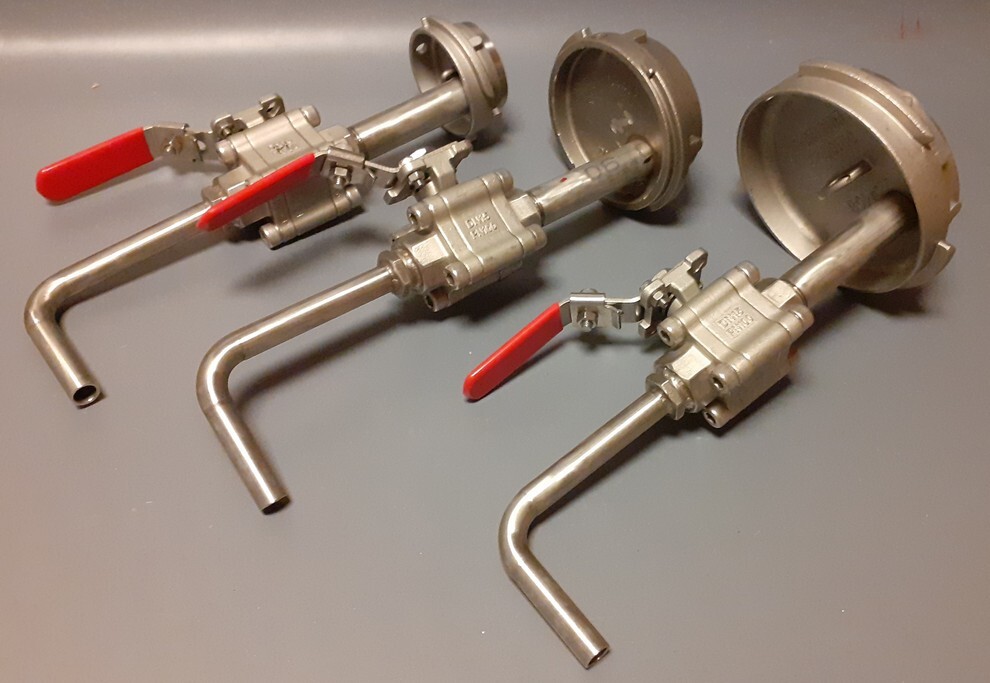

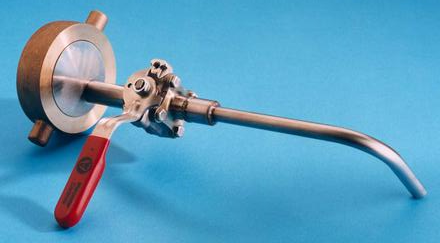

ROAD TANKER SAMPLING VALVE
Safety Sampling Valve
The Road Tanker Sampling Valve is designed to allow road tankers to be safely
sampled before the tank is discharged.
A well-founded and reliable quality assurance requires verification of incoming goods
prior to unloading. In particular, the sampling of tanker vehicles, involved a considerable
deployment of personnel and was very time-consuming in the past.
The new sampling valve for road tankers, which is available for 2, 3 and 4
inch tank truck couplings, provides a remedy. It is no longer necessary to
climb on the vehicle.
Standard Outlet Valve is ½” nominal bore with screwed connections
Firesafe Outlet Valve is ½” nominal bore with welded connections
ROAD TANKER SAMPLING VALVES
Safety Sampling Valve
The Road Tanker Sampling Valve is meticulously engineered to facilitate safe and efficient sampling from road tankers before unloading. This innovative valve ensures compliance with stringent quality assurance protocols by enabling reliable verification of incoming goods without the need for labor-intensive manual sampling methods.
Designed for versatility, the Road Tanker Sampling Valve is compatible with 2, 3, and 4 inch tank truck couplings. Its smart design eliminates the necessity for personnel to climb onto the vehicle, thereby enhancing safety and operational efficiency.
Key Features:
- Standard Outlet Valve: ½” nominal bore with screwed connections
- Firesafe Outlet Valve: ½” nominal bore with welded connections
- Improved safety for operators and reduced risk of contamination
- Streamlined sampling process that saves time and resources
Products in This Category:
- Road Tanker Sampling Valve 2.5" BSP STANDARD OUTLET VALVE PTFE MAIN GASKET
- Road Tanker Sampling Valve 2.5" BSP FIRESAFE OUTLET VALVE PTFE MAIN GASKET
- Road Tanker Sampling Valve 3" BSP STANDARD OUTLET VALVE PTFE MAIN GASKET
- Road Tanker Sampling Valve 3" BSP FIRESAFE OUTLET VALVE PTFE MAIN GASKET
For more detailed information, check the brochure or request a quick quote.
To explore our full range of products, visit our webpage: Road Tanker Sampling Valve.
