SmartGlide pneumatic cup sampler, 150ml cup per stroke
Pneumatic actuated cup sampler for 200 mm downpipes.

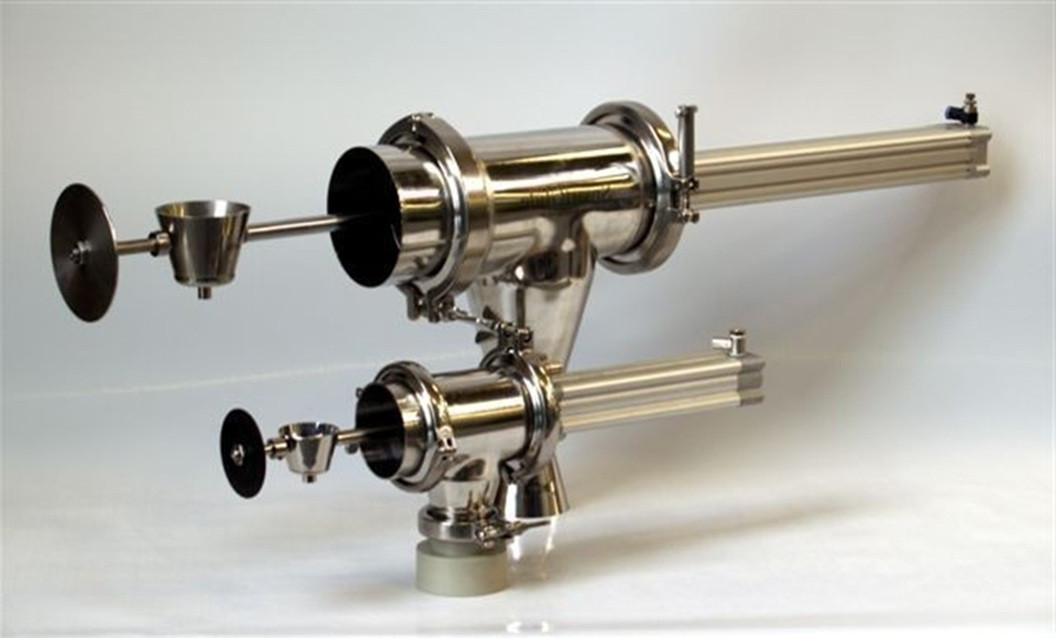

The SmartGlide is specially developed for sampling dusts, powders and granulates in
downpipes. The sampler is used for free flowing solids with particle sizes between 1 nm and 10 mm.
The product is characterized by its' uncomplicated installation and reliable functionality.
The samples are representative and reproducible. Available with either manual or pneumatic actuation.
In the pneumatic version and with appropriate control, time-, volume- or event-proportional sampling can be realized
Operation:

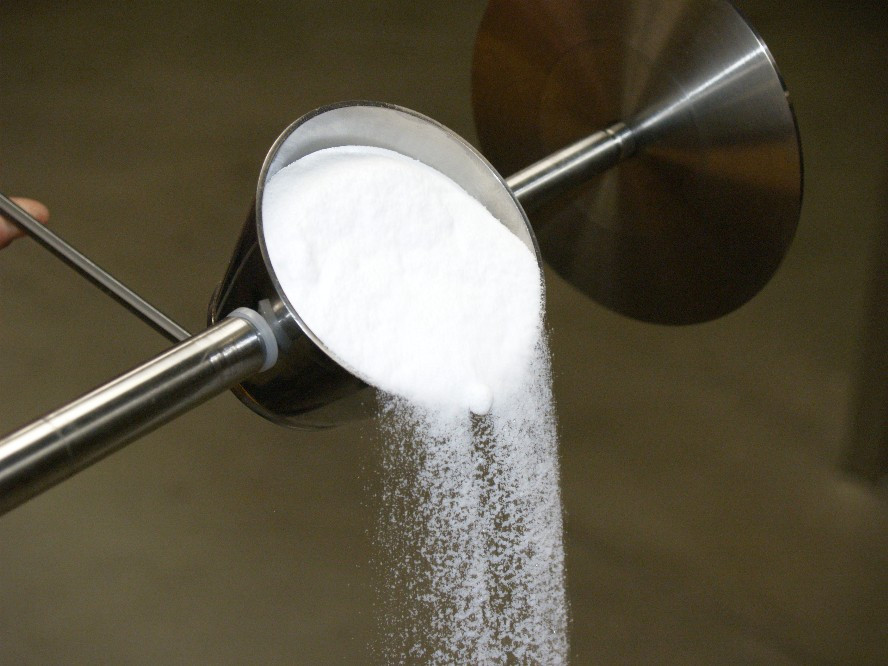

A cup attached to a piston rod is led into the falling stream for sampling, and filled with the
sample. During or after withdrawal into the sampler housing, the cup is tilted and the
sample falls out of the ejection nozzle.
New Improved Design
Mounting and Installation
For the SmartGlide, a mounting location is selected at which the product is in free fall.
Stowing product or a product column is not permitted.
The supplied TC flange DN80 or DN125 is welded into the wall of the pipe or chute.
The sampler is attached to it with a triclamp. Optionally, a sample collection system
(bottle adaptor or bag holder) is connected to the outlet.
