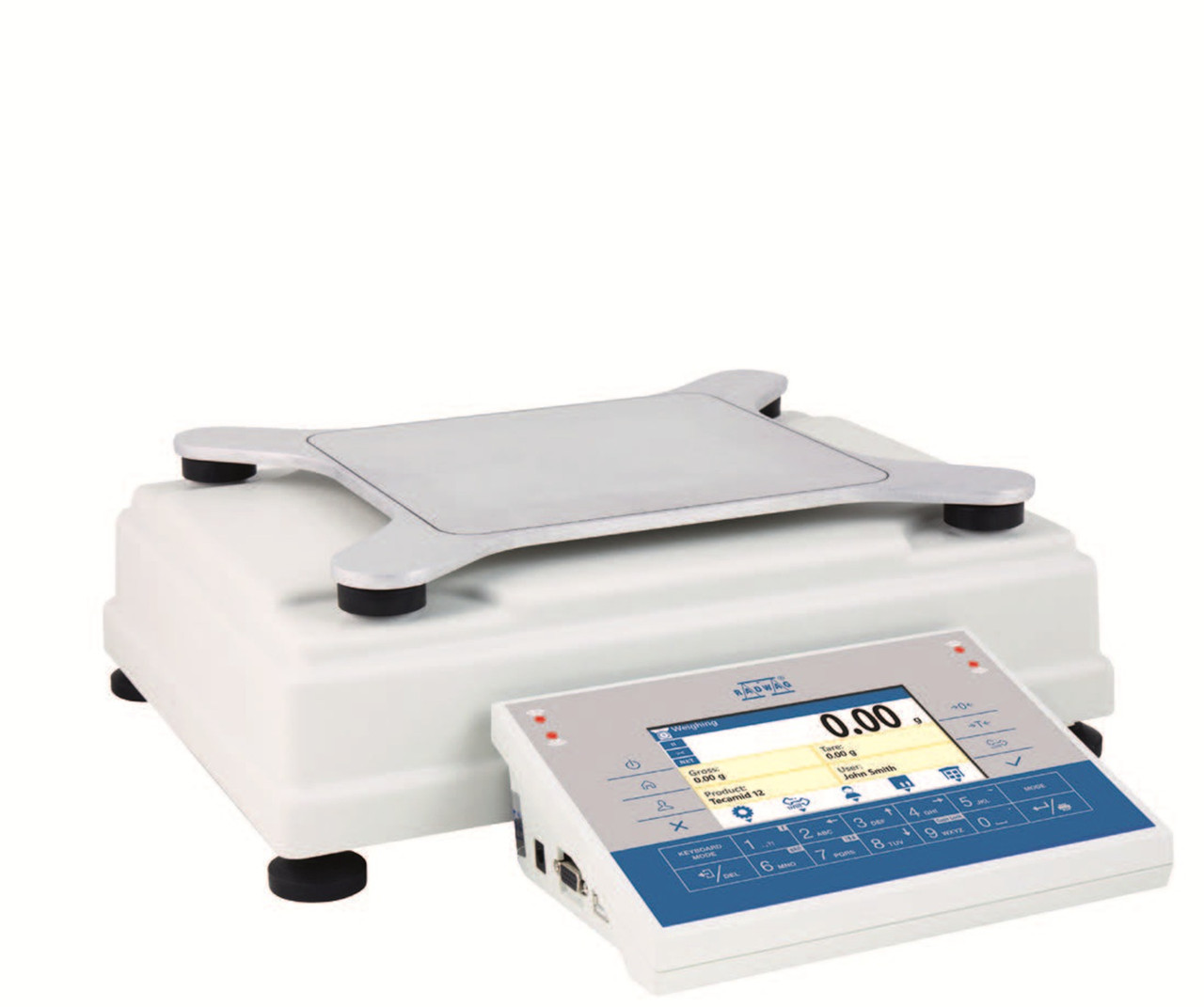

PM 10C32 Advanced Precision Balance 15 kg Capacity
’Advanced level‘ measurement of large masses with the highest accuracy
for use in laboratory and industry
Reliable Results and High Measurement Precision
Excellent measurement parameters and performance enable applying
PM C32 balances in laboratories and various branches of industry.
Radwag MonoBLOCK™, an Innovative Weighing System
The cutting edge technology of the measuring system guarantees stability of repeatability in time,
where sd<1, and a significant resistance to ambient conditions.
Weighing Heavy Loads With the Maximum Accuracy
It is possible to work with samples of different weight values, from a few grams to several kilograms,
wherein the highest measurement accuracy and excellent result repeatability are maintained.
Reliability and Safety
4-point protection system prevents balance overloading. This ensures safety in case too heavy a load
is applied to the weighing pan. The robust design allows operation of the device in challenging ambient conditions
Ease of Use and Maximum Comfort of Operation
5” color screen enables intuitive operation and easy access to numerous applications and functions.
PM C32 program allows screen layout customization.
Automatic Adjustment
Internal adjustment system guarantees the highest accuracy and reliable measurements results.
Touch-Free Operation
Two programmable proximity sensors can be assigned with any function or application. The given function when assigned,
is both run and operated touch-free.
Numerous Options of Data Management
The instrument enables saving all completed measurement data as reports and graphs.
SPECIFICATIONS
Maximum capacity [Max] 15 kg
Minimum load 0.5 g
Readability [d] 0.01 g
Repeatability (5% Max)* 0.004 g
Repeatability (Max) 0.015 g
Sensitivity temperature drift** 2 × 10-6 / °C × Rt
Stabilization time 3 s
Adjustment internal
Display 5” graphic color
Touch-free operation 2 programmable proximity sensors
Power supply 12 ÷ 16 V DC
Weighing pan dimensions 200 × 185 mm
Weighing device dimensions 508 × 296 × 115 mm
Net weight 10 kg
Gross weight 12.2 kg
Packaging dimensions 520 × 520 × 280 mmThe PM 10C32 Advanced Precision Balance is engineered for laboratories and industrial applications requiring exact mass measurements up to 15 kg. With superior accuracy and repeatability, this balance is ideal for professionals seeking reliable data in demanding environments.
Utilizing Radwag’s advanced MonoBLOCK™ weighing technology, this precision balance offers impressive performance, ensuring consistent results in the face of variable ambient conditions. Whether weighing small samples or heavy loads, the PM 10C32 guarantees optimal precision and user comfort with a range of innovative features.
- Maximum capacity of 15 kg with readability of 0.01 g for accurate measurements
- Internal adjustment system for maintaining peak accuracy and reliability
- Robust design with a 4-point protection system to prevent overload risks
- Intuitive 5" color touchscreen interface for easy operation and customization
- Touch-free operation enabled by two programmable proximity sensors for enhanced user convenience
- Quick stabilization time of just 3 seconds to streamline workflow
- Data management capabilities allow saving measurements as detailed reports and graphs
Achieve excellence in weighing performance with the PM 10C32 Advanced Precision Balance, where every measurement counts and reliability leads to confidence in results.
