Product Description
SALES (804) 318-3686

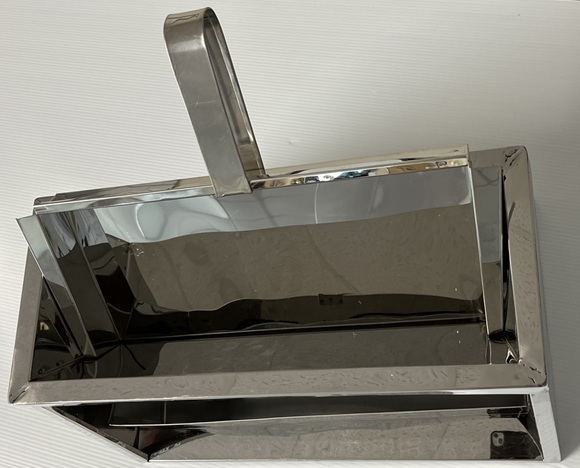

SEED AND GRAIN RIFFLE DIVIDER
The QAQC Lab RIFFLE DIVIDER is suitable for dividing dried seeds and grains
into 2 equal halves, using two series of chutes.
BROCHURE

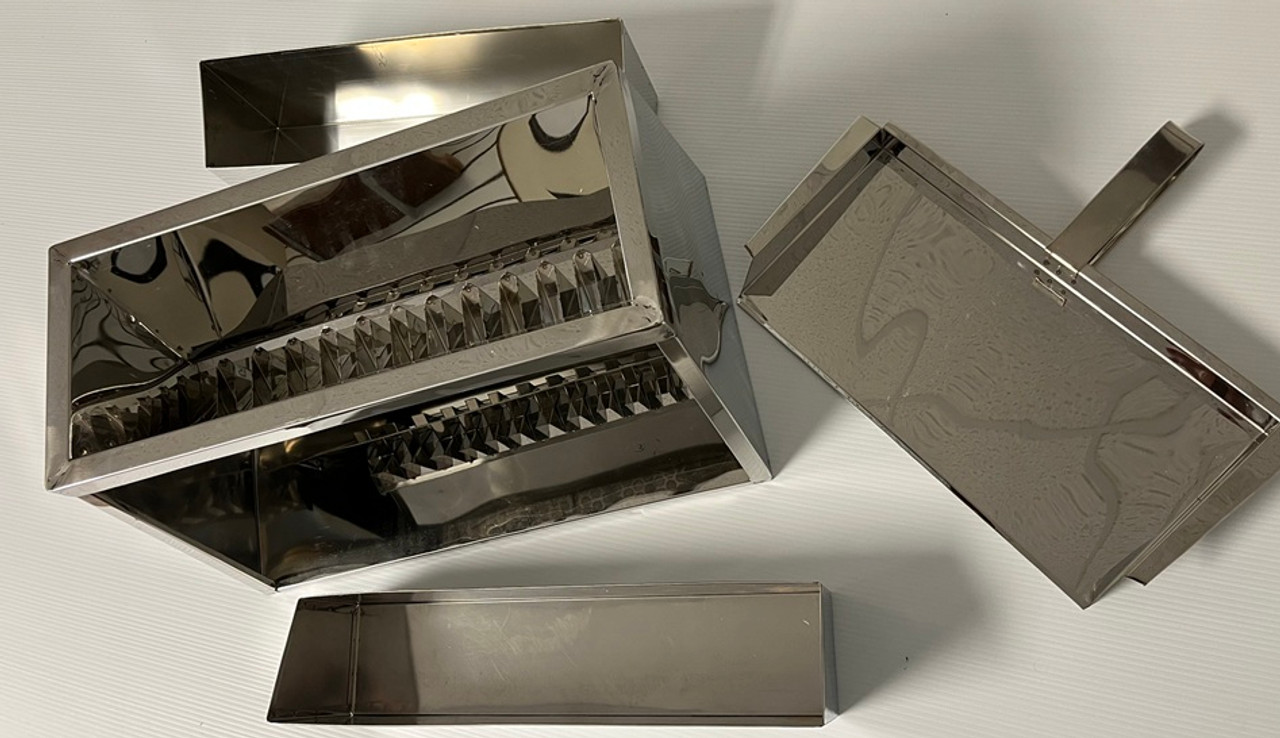

Includes main body, two pans, and one scoop. Made from high
quality stainless steel.
The scoop lays inside the hopper, and when removed, drops the
grains on to the chutes.
Hopper Dimensions approximately
430 mm x 120 mm
Weight 15 lbs Packaged 15" x 22" x 18"
Number of chutes 24
Width of chutes 12 mm
Hopper Size 430 mm x 120 mm
No of pans 2
Instructions: Place the scoop in the hopper in such a way
that it is at a right angle from the hopper, by holding the
handle of the scoop.
The scoop will rest in the middle of the hopper.
Pour the sample into the hopper, and lift the scoop.
The grain is divided into two equal divisions, and
discharged into separate pans.
