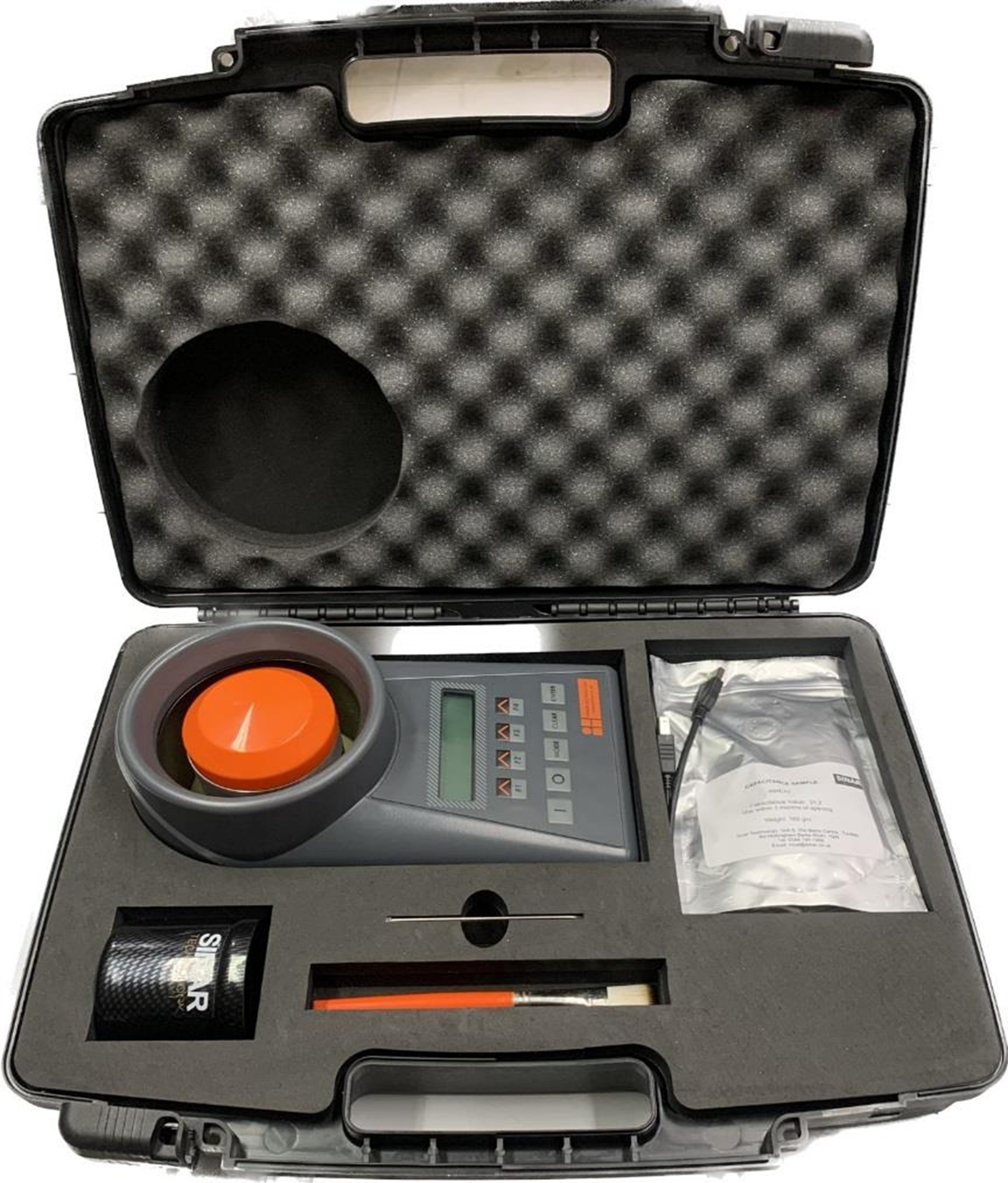

Sinar Technology CP 7070 Moisture Analyzer
The SinarTM CP 7070 Moisture Analyzer houses the latest moisture measuring technology in a compact, portable package.
It has been designed to provide fast moisture results using whole crop samples.
In addition to % moisture content, the CP 7070 simultaneously measures and displays the free flow bulk density in grams per liter, kilograms per hectolitre and the sample temperature.
Accuracy:
±0.5%. Typically, 0.3 STD for %H2O (dependent on application).
Repeatability:
0.04-0.15 STD for H2O (dependent on application).
Screen Resolution:
0.1 for H2O, Bulk density and Temperature
Measurement Range:3-30% H2O (dependent on application).
Commodity Calibrations
25
Units of Bulk Density:g/l, kg/hl, lb/bu, lb/cf Customer configurable.
Temperature:°C or °F Customer configurable.
Processor:MSP430 Ultra Low Power 16-bit Micro controller
Output BLE TX Device:BLE653 V5.1 2MBPS. TX wavelength 2.4 - 2.48 GHz
BLE Range:10 Meters line of sight.
BLE Output Data:%H2O, Bulk Density, Temperature
BLE Receiver:Sinar Technology App. See QR code.
Operating Environment:0 to 40°C
Storage Environment:-10 to 70°C none condensing
Instrument Dimensions:(H)11.5cm x (W)16cm x (D)28cm
Instrument Weight:1.3Kg including batteries
Instrument Power Supply:
4 Alkaline Type “C” Size 1.5V Batteries
Battery Life:
Estimated battery life: 50,000 readings dependent on battery quality and ambient temperature.
Sample Cell - Fixed:
290ml Volume or 50-240g
Cell Construction:Aluminum Alloy Polyester Powder Coated.
Case Material: Flame retardant acrylonitrile butadiene styrene (ABS)
Weight Balance:Measures and corrects for weight between 100-240 grams
Temperature Correction:Thermistor sensor. Correction is software programmable.
Instrument USB connector:USB TYPE B
