TAP DENSITY ANALYZER
The Tap Density Tester is used to measure the tap density of powders. It consists of touch pan el,
printer, electronic balance, tap assembly, motor and glass cylinders. It is is designed to meet all
currently known international standards. The parameters are flexible to set in order to get standardized
results as per users diversified requirements. In addition to auto measurement, auto print and auto
calculation of tap density, it can also automatically measure the flow ability of the powder by the
Hausner Ratio and Compressibility Index

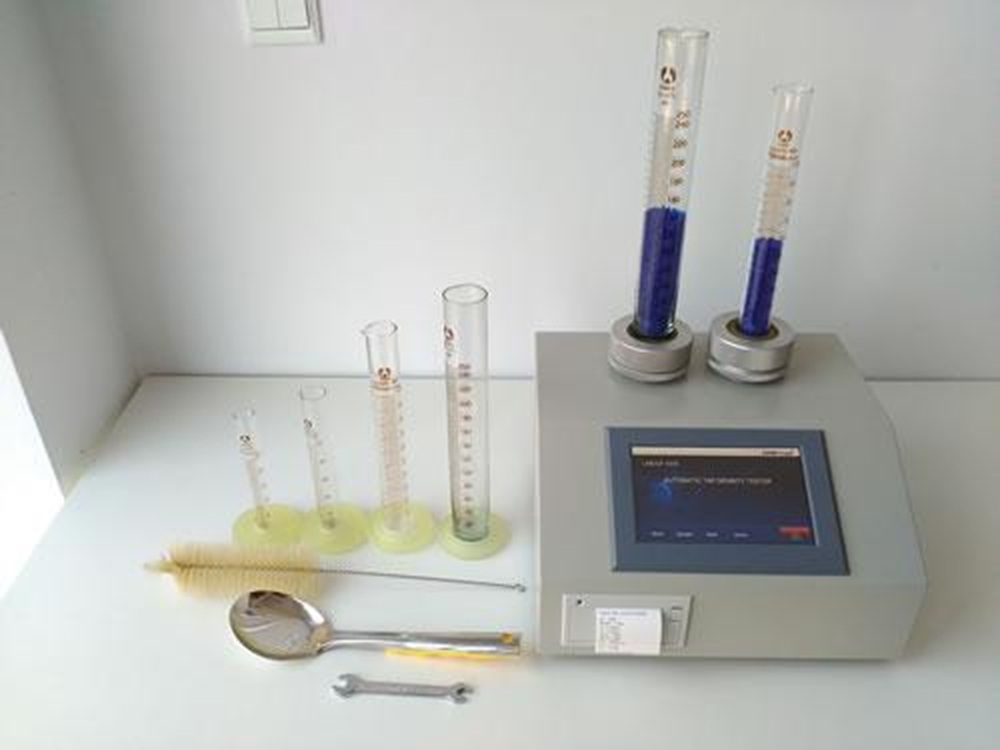

INCLUDES:
CYLINDER HOLDER
GLASS CYLINDER 100ML
GLASS CYLINDER 250ML
CYLINDER PAD
HEIGHT ROD
CYLINDER BRUSH
FUSE
POWER CABLE
TOOL
SAMPLE SPOON
FEATURES:

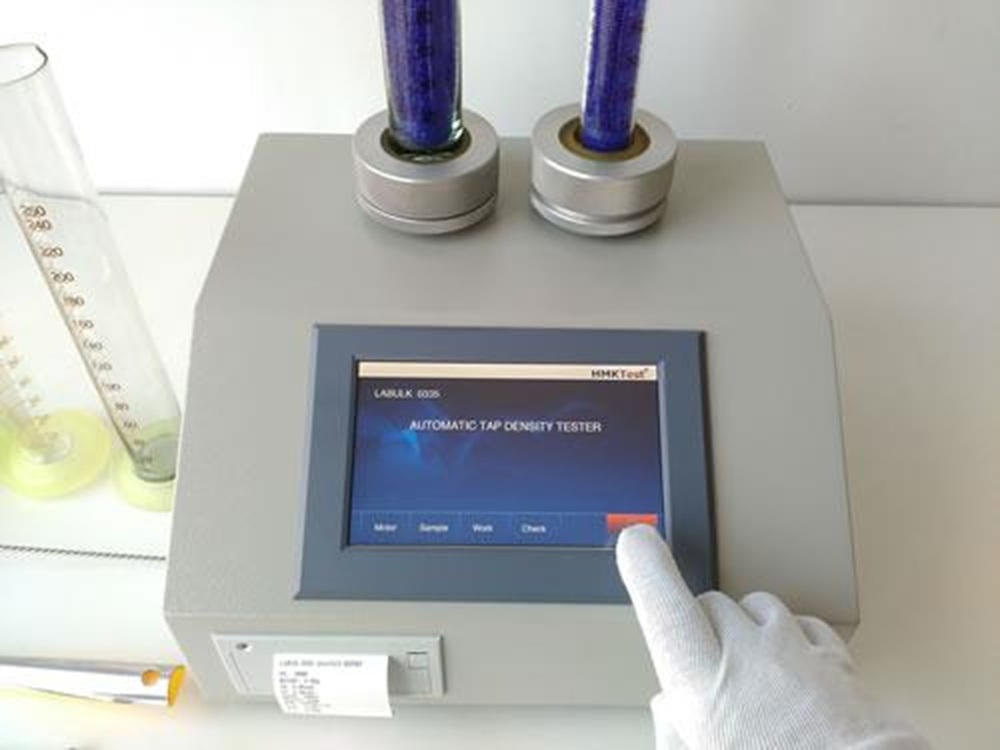

New generation of the operating system, control the operation by 7” LCD touch panel
Automatic communication check between host and modules and host and accessories.
Alternative testing mode, tap time or number freely set
Tap height selection printed on the test report
In addition to the default frequency, the user can freely set any rpm.
In addition to SOP tap number, user can freely set any tap number to meet special requirements.
During the test all of the set parameters are visible to understand and evaluate working conditions
RS-232 connects host and balance, weight data automatically shown on LCD
Simply a touch to print reports in very detail
Flow measurements such as Hausner ratio or Compressibility are obtained during testing
Login Status either Administrator or User, accessed by password, GMP compliance
Only the administer has right to change the time, or delete records, GMP compliance
Stylus printer optional in order to print and keep test results permanently
SPECIFICATIONS
Physical Property to measure: tap density,
Hausner ratio, Compressibility Index
Sample Loading Volume: 5-250 mL
Timing range: 0-99999 sec
Counting range: 0-999999
Tap height: 3 or 14 mm
Frequency: 250/300/custom
Measurement: W33 x D 31 x H23 cm
(Cylinder excepted)
Power: 220V/110V/50/60Hz
Weight: 16 Kgs NET
